The output shaft speed sensor is located nearest the drive axle, and is used by the ECU to monitor the speed/RPM of the transmission output shaft. A P0720 diagnostic trouble code gets stored when the data coming from the OSS sensor doesn’t fall within the ECU’s preprogrammed parameters.
What Transmission Do I Have?
How Serious is the Code?
The P0720 diagnostic trouble code can be serious, if drivability issues occur or Limp Mode is engaged.
Symptoms

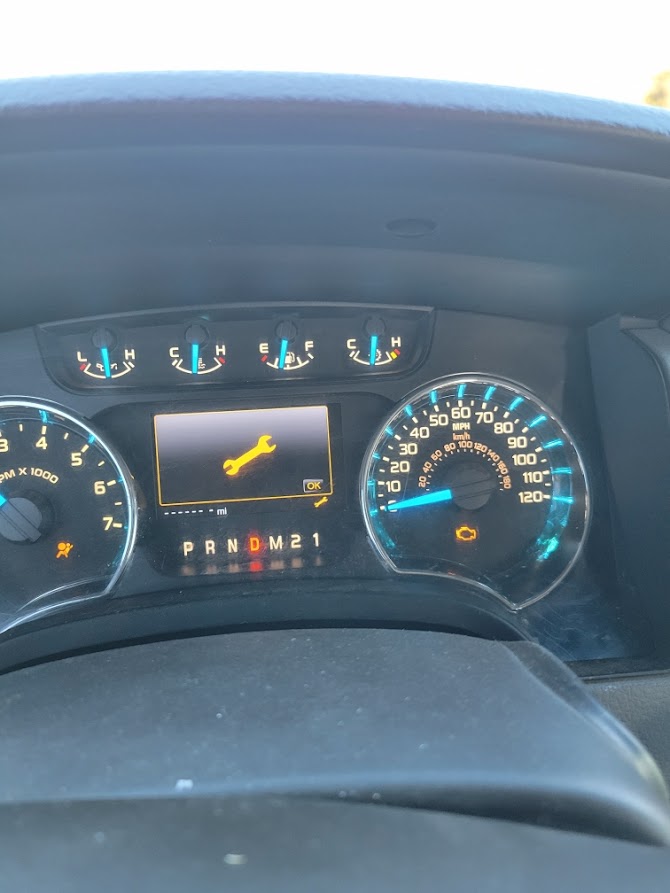

- Check engine light
- Delayed, harsh or erratic shifts
- Transmission not able to shift gears
- Limp Mode
- Speedometer failure
- Engine misfire/hesitation
Causes
- Failed output speed sensor
- Failed input speed sensor
- TFT sensor failure
- Broken, loose or corroded connectors
- Wiring damage or shorts
- Valve body or pressure related issues
How to Diagnose the Code?
The first thing that a mechanic should look for when diagnosing a P0720 trouble code, is the additional DTC’s that also may be stored in the ECU. These could provide clarity, and help to discover the source of the problem. They should also check the condition of the transmission fluid, as gunk and metallic debris can affect the operation of the sensor. The next step should be to inspect the wiring and connectors, to see if there is any damage, corrosion, or evidence of a short. If no issues are found, then the output shaft speed sensor will have to be tested with a volt meter and possibly an oscilloscope. The transmission fluid temperature sensor, and the transmission input shaft speed sensor may also need to be tested as well.
Common Mistakes When Diagnosing
One of the most common mistakes made when diagnosing a P0720 DTC is ignoring the condition of the transmission fluid, as well as discounting the effect that an ATF leak can have on an OSS sensor.
What Repairs Will Fix P0720?
- Replace output speed sensor
- Replace input speed sensor
- Repair or replace damaged wiring and/or connectors
- Replace the transmission fluid temperature sensor
- Change transmission fluid and filter
- Fix transmission fluid leaks
Related Codes
On some vehicles, the transmission output shaft sensor can also be used as the vehicle speed sensor (VSS sensor). And still others may share the same code for the TFT sensor, so you will need to consult a mechanic in order to weed through all of the possible codes.
